Ducati 1199 Superleggera pictures, videos and specifications

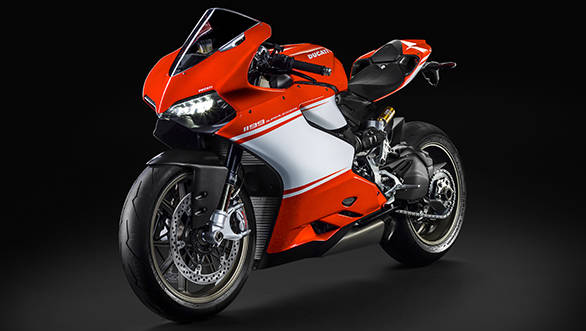

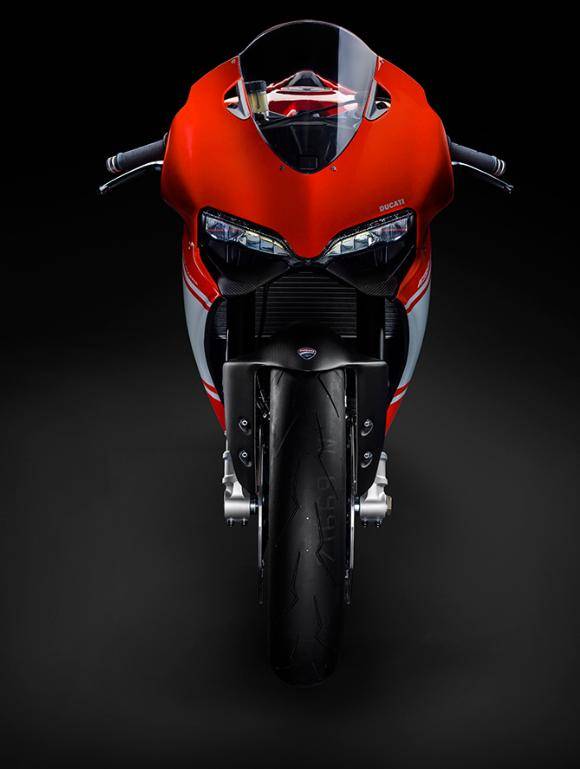

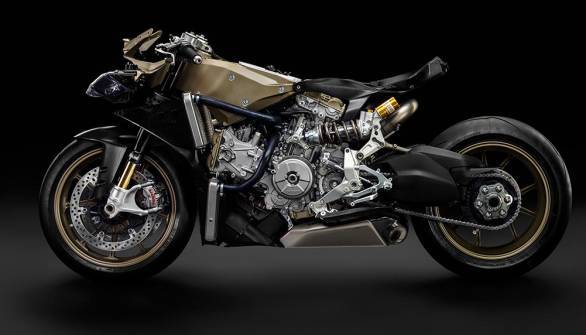

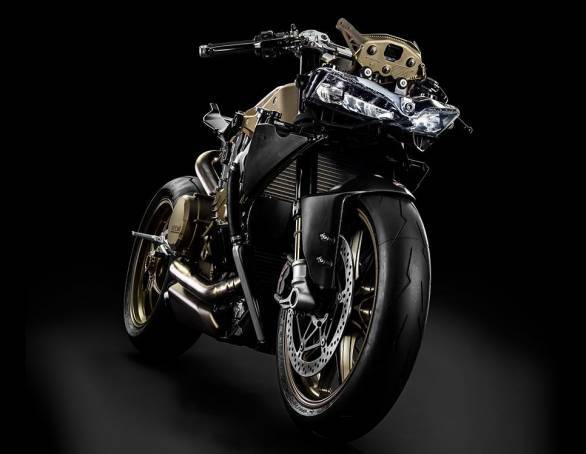

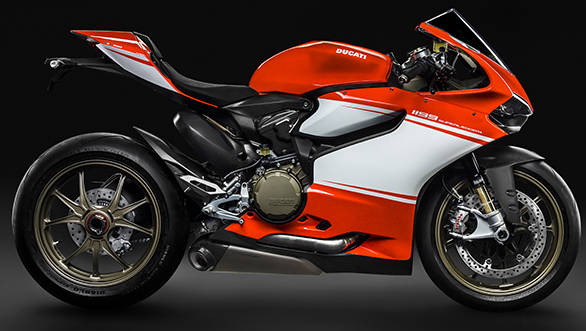

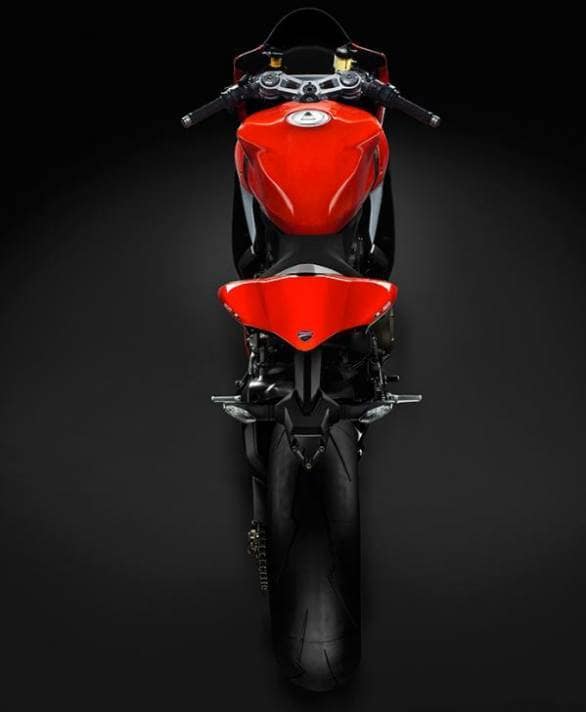

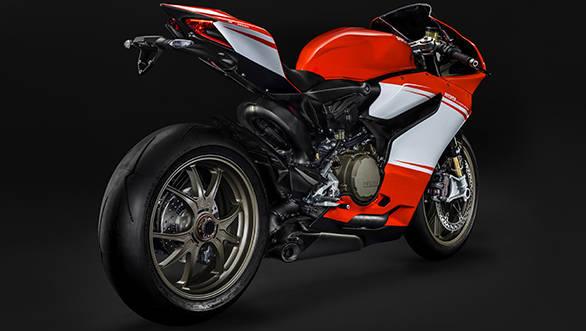

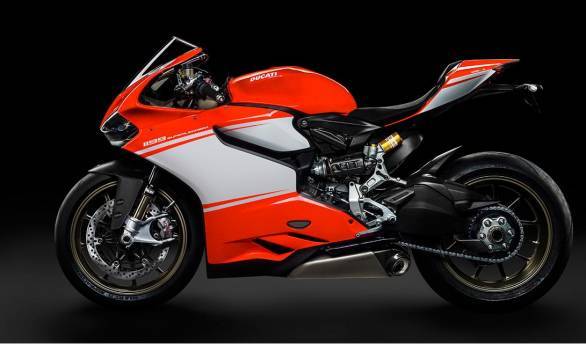

Ducati has started production of the 1199 Superleggera, which has the highest power to weight ratio among production motorcycles. Only 500 examples of this superbike will be produced, about three-fourth of which have already been sold. Here are pictures, videos and specifications of the Ducati 1199 Superleggera.
2014 Ducati 1199 Superleggera production begins - video
[youtube=http://www.youtube.com/watch?v=xUcki_CRR-A&w=586&h=340]
2014 Ducati 1199 Superleggera official video
[youtube=http://www.youtube.com/watch?v=ijIXYpnMrtg&w=586&h=340]
2014 Ducati 1199 Superleggera specifications
| 2014 DUCATI 1199 SUPERLEGGERA SPECIFICATIONS | #colspan# |
| ENGINE | |

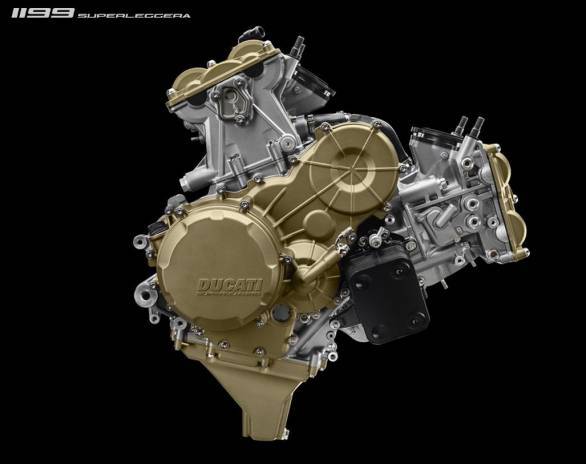

| Type | Superquadro: L-Twin cylinder, Desmodromic valve actuation, 4 valves per cylinder, liquid cooled |
| Displacement | 1,198 cc |
| Bore X stroke | 112 x 60.8 mm |
| Compression ratio | 13.2:1 |
| Power | exceeds 200PS@11,500rpm |
| Torque | 134Nm@10,200rpm |
| Fuel injection | Mitsubishi electronic fuel injection system. Twin injectors per cylinder. |
| Exhaust | 2-1-2 system, primary tubes in titanium. Twin titanium mufflers. 2 lambda probes and 2 catalytic converters |
| TRANSMISSION | |
| Gearbox | 6 speed |
| Primary drive | Straight cut gears; Ratio 1.77:1 |
| Ratio | 1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24 |
| Final drive | Chain; Front sprocket Z=15; Rear sprocket Z=41 |
| Clutch | Hydraulically controlled slipper/self-servo wet multiplate |
| CHASSIS | |
| Frame | Monocoque in magnesium alloy |
| Front suspension | Fully adjustable 43mm USD Öhlins FL 916 fork |
| Front wheel | 3-spoke magnesium alloy 3.50" x 17" |
| Front tyre | Pirelli Diablo Supercorsa SP 120/70 ZR17 |
| Rear suspension | Fully adjustable single Öhlins TTX36 shock with titanium spring, with linkage adjustable between progressive/flat. Aluminium single-sided swingarm. Adjustable swingarm pivot. |
| Rear wheel | 3-spoke magnesium alloy 6.00" x 17" |
| Rear tyre | Pirelli Diablo Supercorsa SP 200/55 ZR17 |
| Wheel travel (front/rear) | 120 mm (4.7 in) - 130 mm (5.1 in) |
| Front brake | 2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Evo M50 4-piston callipers with ABS, Brembo MCS 19-21 adjustable-ratio front brake master cylinder, remote lever adjuster |
| Rear brake | 245 mm disc, 2-piston calliper with ABS |
| Instrumentation | Colour TFT display |
| EQUIPMENT | |
| Riding Modes, Power Modes, ABS, DTC, DQS, EBC, DES, DDA+ w/GPS module, Fully RbW. DWC based on inertial platform. Dedicated buttons for rapid setting of DTC, DWC, EBC. Titanium rods. Carbon fibre parts: fairings, seat base, heel guards, air duct covers, power switch cover, rear shock cover, front and rear mudguards. Titanium bolts. | #colspan# |
| DIMENSIONS AND WEIGHTS | |
| Dry weight | 155kg |
| Kerb weight without fuel | 166kg |
| Kerb weight | 177kg |
| Seat height | 830mm |
| Fuel tank capacity | 17l |
| Number of seats | Single |
