Ducati 1199 Superleggera pictures, videos and specifications

Team OD Updated: April 03, 2014, 02:56 PM IST

Ducati has started production of the 1199 Superleggera, which has the highest power to weight ratio among production motorcycles. Only 500 examples of this superbike will be produced, about three-fourth of which have already been sold. Here are pictures, videos and specifications of the Ducati 1199 Superleggera.

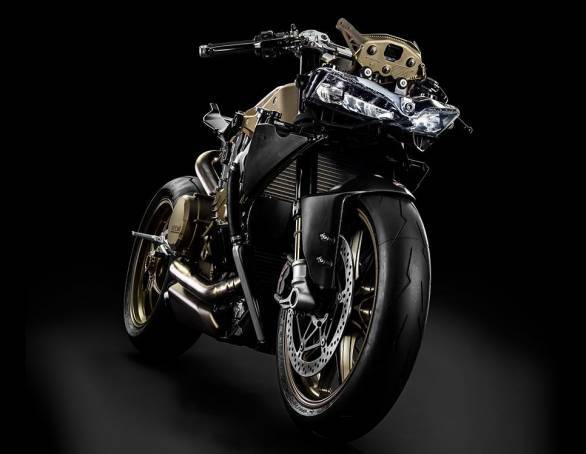

Ducati Superleggera (2)

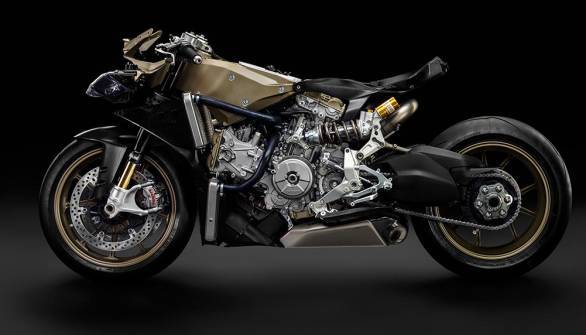

Ducati Superleggera

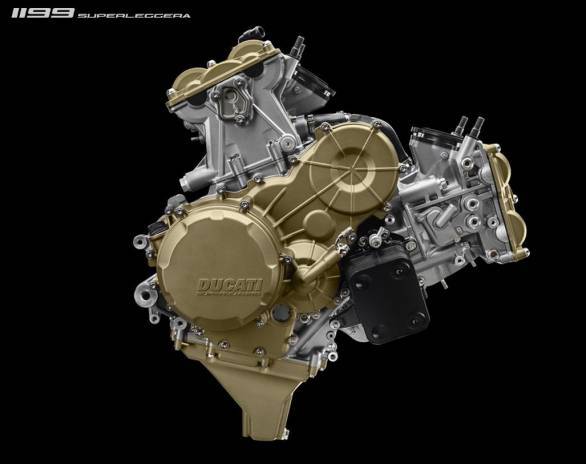

Ducati Superleggera (1)

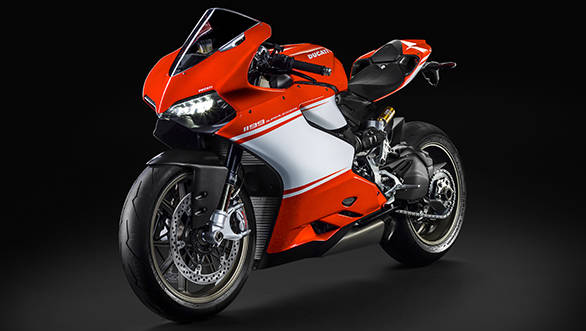

Ducati 1199 Superleggera (11)

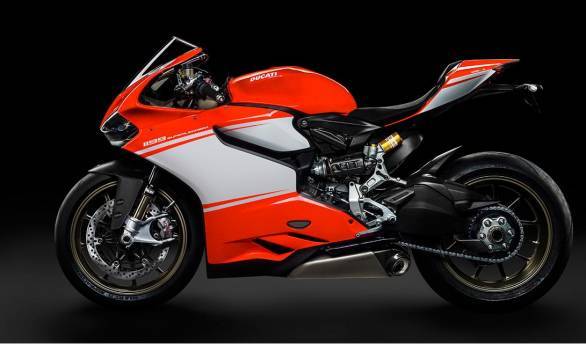

Ducati 1199 Superleggera (5)

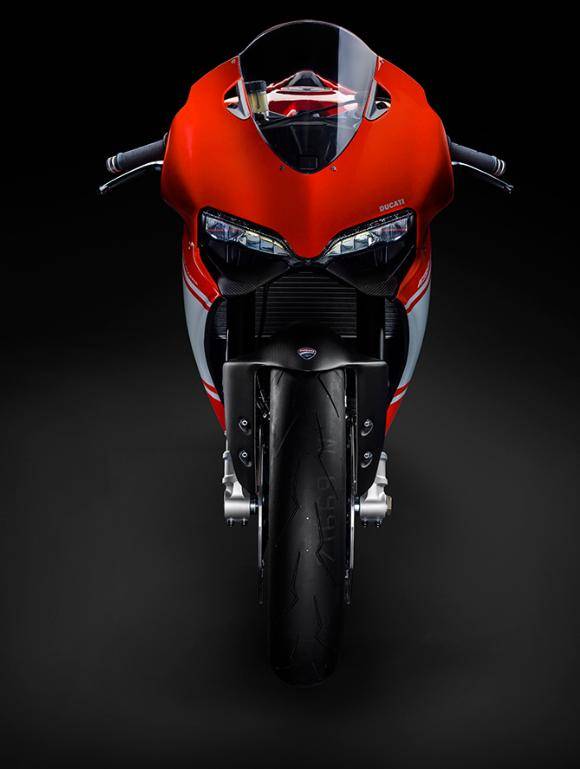

Ducati 1199 Superleggera (3)

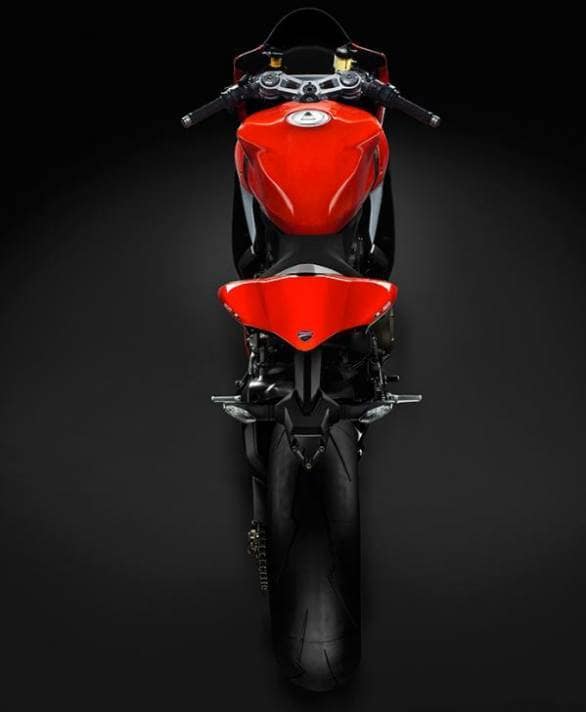

Ducati 1199 Superleggera (4)

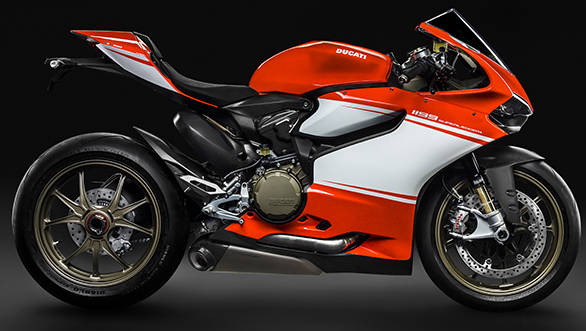

Ducati 1199 Superleggera (9)

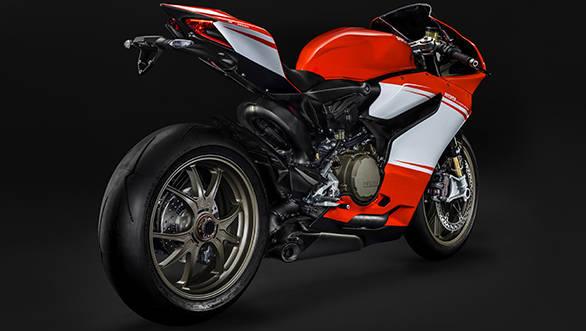

Ducati 1199 Superleggera (10)

2014 Ducati 1199 Superleggera production begins - video

2014 Ducati 1199 Superleggera specifications

Type Superquadro: L-Twin cylinder, Desmodromic valve actuation, 4 valves per cylinder, liquid cooled
Displacement 1,198 cc
Bore X stroke 112 x 60.8 mm
Compression ratio 13.2:1
Power exceeds 200PS@11,500rpm
Torque 134Nm@10,200rpm
Fuel injection Mitsubishi electronic fuel injection system. Twin injectors per cylinder.
Exhaust 2-1-2 system, primary tubes in titanium. Twin titanium mufflers. 2 lambda probes and 2 catalytic converters
Gearbox 6 speed
Primary drive Straight cut gears; Ratio 1.77:1
Ratio 1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24
Final drive Chain; Front sprocket Z=15; Rear sprocket Z=41
Clutch Hydraulically controlled slipper/self-servo wet multiplate
Frame Monocoque in magnesium alloy
Front suspension Fully adjustable 43mm USD Öhlins FL 916 fork
Front wheel 3-spoke magnesium alloy 3.50" x 17"
Front tyre Pirelli Diablo Supercorsa SP 120/70 ZR17
Rear suspension Fully adjustable single Öhlins TTX36 shock with titanium spring, with linkage adjustable between progressive/flat. Aluminium single-sided swingarm. Adjustable swingarm pivot.
Rear wheel 3-spoke magnesium alloy 6.00" x 17"
Rear tyre Pirelli Diablo Supercorsa SP 200/55 ZR17
Wheel travel (front/rear) 120 mm (4.7 in) - 130 mm (5.1 in)
Front brake 2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Evo M50 4-piston callipers with ABS, Brembo MCS 19-21 adjustable-ratio front brake master cylinder, remote lever adjuster
Rear brake 245 mm disc, 2-piston calliper with ABS
Instrumentation Colour TFT display
Riding Modes, Power Modes, ABS, DTC, DQS, EBC, DES, DDA+ w/GPS module, Fully RbW. DWC based on inertial platform. Dedicated buttons for rapid setting of DTC, DWC, EBC. Titanium rods. Carbon fibre parts: fairings, seat base, heel guards, air duct covers, power switch cover, rear shock cover, front and rear mudguards. Titanium bolts. #colspan#
Dry weight 155kg
Kerb weight without fuel 166kg
Kerb weight 177kg
Seat height 830mm
Fuel tank capacity 17l
Number of seats Single
