TVS Max 4R 2013 STD
TVS Max 4R Details
Overview
Dimensions (L x W x H)
2005 x 733 x 1055
Engine displacement
110cc
Transmission
4-Speed
Maximum Power (ps)
9
Fuel Tank Capacity
16
Mileage (Overall)
60.00
Specifications
Engine Displacement (cc)
110
Cylinders
1
Cylinder Config
Single
Spark Plugs Per Cylinder
1
Cooling System
Air-cooled
Maximum power (PS)
9
Maximum torque (Nm)
9
Gears
4
Gearbox Type
Constant mesh
Transmission type
4-Speed
Valvetrain
SOHC
Fuel Type
Petrol
Fuel System
Carburettor
Ignition Type
A/C, D/C
Clutch Type
Wet multiplate
Chassis Type
Single down tube
Front Suspension
Telescopic forks
Rear Suspension
4 shock absorbers
Brakes Front
130
Brakes Rear
130
Brakes Front Type
Drum
Brakes Rear Type
Drum
Tyres Front
2.75x17-4
Tyres Rear
3.00x17-6
Headlight Type
Bulb
Taillight Type
Bulb
Indicator type
Bulb
features
Tachometer
Electric start
Digital speedometer
Digital odo
Digital fuel efficiency indicator
Fuel gauge
Low fuel indicator
Low oil indicator
Low battery indicator
Tripmeter
Shift light
Pillion seat
Pillion footrest
Pillion backrest
Pillion grabrail
Stand warning
Engine turn off switch
Clip on bars
ABS
Clock
Projector lamp
LED tail lamp
Pass light
Alloy wheels
Tubeless tyres
Radial tyres
Gas charged suspension
Dimensions
Length (mm)
2005
Width (mm)
733
Height (mm)
1055
Wheelbase (mm)
1240
Ground clearance (mm)
165
Fuel capacity
16
Reserve fuel capacity (litres)
3
Kerb weight (kg)
118
Seating
2
Performance
0 - 60kmph
-NA-
0 - 400m (seconds)
-NA-
Top Speed
85
60 - 0kmph distance
-NA-
City (kmpl)
-NA-
Highway (kmpl)
-NA-
Overall (kmpl)
-NA-
Manufacturer claimed (kmpl)
60.00

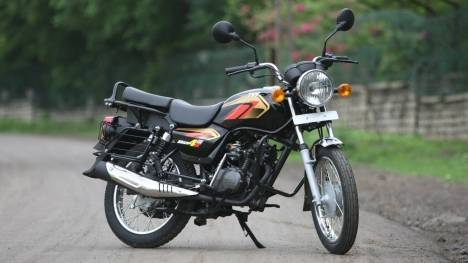

TVS Max 4R Gallery
