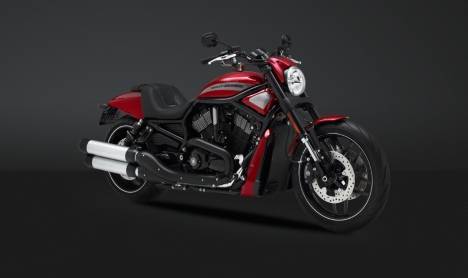

Harley-Davidson Night Rod 2013 Special
Harley-Davidson Night Rod Details
Overview
Dimensions (L x W x H)
2440 x 870 x 675
Engine displacement
1247cc
Transmission
5-Speed
Maximum Power (ps)
126
Fuel Tank Capacity
19
Mileage (Overall)
15.00
Specifications
Engine Displacement (cc)
1247
Cylinders
2
Cylinder Config
V-twin
Spark Plugs Per Cylinder
2
Cooling System
Liquid-cooled
Maximum power (PS)
126
Maximum torque (Nm)
111
Gears
5
Gearbox Type
Transmission type
5-Speed
Valvetrain
SOHC
Fuel Type
Petrol
Fuel System
Fuel injection
Ignition Type
Electronic
Clutch Type
Wet multiplate
Chassis Type
Steel perimeter upper frame
Front Suspension
Wide 49 mm custom
Rear Suspension
Preload adjustable
Brakes Front
300
Brakes Rear
300
Brakes Front Type
Disc
Brakes Rear Type
Disc
Tyres Front
120/70 ZR19
Tyres Rear
240/40 R18 79V
Headlight Type
Halogen
Taillight Type
LED
Indicator type
Bulb
features
Tachometer
Electric start
Digital speedometer
Digital odo
Digital fuel efficiency indicator
Fuel gauge
Low fuel indicator
Low oil indicator
Low battery indicator
Tripmeter
Shift light
Pillion seat
Pillion footrest
Pillion backrest
Pillion grabrail
Stand warning
Engine turn off switch
Clip on bars
ABS
Clock
Projector lamp
LED tail lamp
Pass light
Alloy wheels
Tubeless tyres
Radial tyres
Gas charged suspension
Dimensions
Length (mm)
2440
Width (mm)
870
Height (mm)
675
Wheelbase (mm)
1705
Ground clearance (mm)
115
Fuel capacity
19
Reserve fuel capacity (litres)
Kerb weight (kg)
302
Seating
2
Performance
0 - 60kmph
-NA-
0 - 400m (seconds)
-NA-
Top Speed
170
60 - 0kmph distance
-NA-
City (kmpl)
-NA-
Highway (kmpl)
-NA-
Overall (kmpl)
-NA-
Manufacturer claimed (kmpl)
15.00
