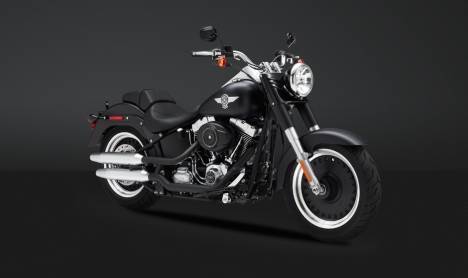

Harley-Davidson Fat Boy 2013 Special
Harley-Davidson Fat Boy Details
Overview
Dimensions (L x W x H)
2385 x 990 x 1095
Engine displacement
1585cc
Transmission
6-Speed
Maximum Power (ps)
71
Fuel Tank Capacity
19
Mileage (Overall)
17.85
Specifications
Engine Displacement (cc)
1585
Cylinders
2
Cylinder Config
V-twin
Spark Plugs Per Cylinder
2
Cooling System
Air-cooled
Maximum power (PS)
71
Maximum torque (Nm)
132
Gears
6
Gearbox Type
Manual
Transmission type
6-Speed
Valvetrain
DOHC
Fuel Type
Petrol
Fuel System
Fuel injection
Ignition Type
Electronic
Clutch Type
Wet Multiplate
Chassis Type
Mild Steel, Tubular Frame
Front Suspension
Telescopic forks
Rear Suspension
Coil-over
Brakes Front
292
Brakes Rear
292
Brakes Front Type
4-piston fixed disc
Brakes Rear Type
2-piston disc
Tyres Front
140/75 R17 67V
Tyres Rear
200/55 R17 78V
Headlight Type
Halogen/LED
Taillight Type
LED
Indicator type
LED
features
Tachometer
Electric start
Digital speedometer
Digital odo
Digital fuel efficiency indicator
Fuel gauge
Low fuel indicator
Low oil indicator
Low battery indicator
Tripmeter
Shift light
Pillion seat
Pillion footrest
Pillion backrest
Pillion grabrail
Stand warning
Engine turn off switch
Clip on bars
ABS
Clock
Projector lamp
LED tail lamp
Pass light
Alloy wheels
Tubeless tyres
Radial tyres
Gas charged suspension
Dimensions
Length (mm)
2385
Width (mm)
990
Height (mm)
1095
Wheelbase (mm)
1630
Ground clearance (mm)
125
Fuel capacity
19
Reserve fuel capacity (litres)
4
Kerb weight (kg)
330
Seating
2
Performance
0 - 60kmph
-NA-
0 - 400m (seconds)
-NA-
Top Speed
170
60 - 0kmph distance
-NA-
City (kmpl)
-NA-
Highway (kmpl)
-NA-
Overall (kmpl)
-NA-
Manufacturer claimed (kmpl)
17.85
